Pitch, link count, and the sprockets that come with it

The best motorcycle chain kits for 2026

A chain kit is a chain and two sprockets sold together because they wear together, and fitting a new chain onto worn sprockets ruins the chain in a fraction of its life. The specification begins with two numbers that are not negotiable. Pitch — 520, 525, 530 and so on — is the distance between pins and the width of the rollers, and it is set by the machine. Link count is set by the machine and its gearing, and a chain can be shortened but not lengthened. Get either wrong and nothing fits. The sprocket side adds a bolt pattern and a tooth count, and changing the tooth count changes the gearing, which is a deliberate decision rather than a variation between brands. Then the property that separates chains at the same pitch: the sealing ring. A plain chain has no seals, is cheapest, and needs lubricating constantly. An O-ring chain traps grease between the pins and the bushes behind round-section seals. X-ring chains use a profiled seal that touches in two places, which makers publish as less drag and longer life. All three are real constructions with published names, and the difference is in maintenance frequency rather than in anything mysterious. Tensile strength is published in newtons or kilograms by most makers and is comparable within a pitch. The sprockets are read on material: steel lasts longest, aluminium is lighter and wears faster, and a hybrid rear sprocket is a compromise makers publish as such. Last, and easily overlooked: which joining link is supplied — a rivet link needs a tool, a clip link does not, and most makers publish which one is in the box. We compare pitch and link count, sealing ring type, published tensile strength, sprocket tooth counts and material, and the joining link supplied.

These parts compared, figure by figure

1.

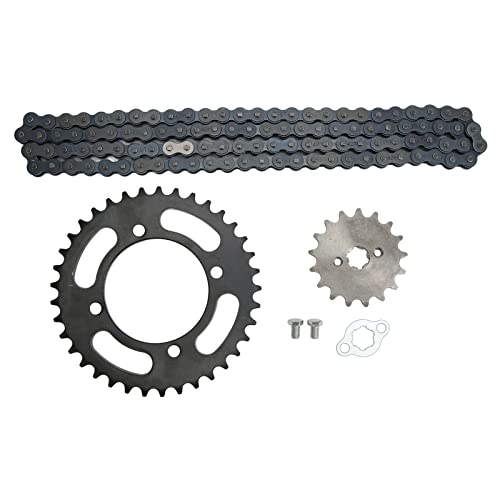

   EVGATSAUTO 420 chain kit 37/17

   A 420-pitch chain and sprocket kit with 17 front and 37 rear teeth, published for 17 mm countershafts on 50 to 125 cc dirt bikes, mini bikes, ATVs and go-karts.

   Pitch

   420 (from the title)

   Gearing

   17 teeth front, 37 teeth rear (from the title)

   Front sprocket

   0.235 inch thick, 17T; centre mounting holes 1.18 inch apart; compatible with 17 mm engine countershafts (maker’s bullet)

   Treatment

   Sprockets heat-treated, stated to increase strength and wear resistance (maker’s bullet)

   Stated vehicles

   50 cc to 125 cc dirt bikes, mini bikes, ATVs, four-wheel go-karts (maker’s bullet)

   Supplied

   Front sprocket with mounting bolts (maker’s bullet)

   Amazon reference

   B0B2PVTNVP (one reference across 5 Amazon marketplaces)

   • Publishes the countershaft diameter — 17 mm — which is the measurement that decides whether the front sprocket goes on
   • Sprocket thickness and bolt spacing both given
   • Chain length in links is not published, and it is the other half of a chain kit

   Best for: A 50–125 cc machine with a 17 mm countershaft, replacing a worn 420 set.

   ≈ €31

   Check price on Amazon
2.

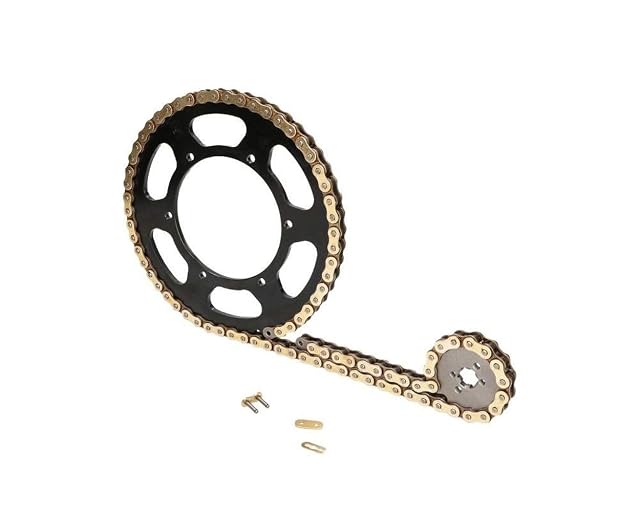

   2EXTREME 4200868

   A chain and sprocket kit for the Derbi Senda, GPR and Gilera SMT 50, at stock gearing of 11 and 53 teeth, with a 140-link 420 chain and a clip joining link.

   Pitch

   420 (maker’s bullet)

   Gearing

   Front sprocket 11 teeth, rear sprocket 53 teeth — stated as the factory ratio (maker’s bullet)

   Chain length

   140 links (maker’s bullet)

   Joining link

   Clip link (maker’s bullet)

   Stated fitment

   Derbi Senda, Derbi GPR, Gilera SMT 50 (from the title)

   Ring type

   Not published — no O-, X- or Z-ring is stated.

   Amazon reference

   B09C8S2C4R (one reference across 2 Amazon marketplaces)

   EAN

   4064553034925

   • The only kit here that publishes pitch, both sprocket counts, chain length AND the joining link type
   • States the gearing is the factory ratio, so the speedometer stays honest
   • A clip link is the weaker of the two joining methods

   Best for: A Derbi Senda, GPR or Gilera SMT 50 going back to standard gearing.

   ≈ €41

   Check price on Amazon
3.

   Tiardey CP101125

   A front and rear sprocket set for tuned go-karts, ATVs and mini bikes, with a 55-tooth rear sprocket of 29 mm, a 12-tooth front and a 146-link chain.

   Chain type

   25H / 25L (from the title)

   Rear sprocket

   55 teeth, 29 mm (from the title)

   Front sprocket

   12 teeth (from the title)

   Chain length

   146 links (from the title)

   Stated vehicles

   Tuned go-karts, ATVs, motocross and mini bikes (maker’s bullet)

   Material

   The maker puts nothing in writing on this.

   Amazon reference

   B0DQCLFPVL (one reference across 6 Amazon marketplaces)

   • Publishes both tooth counts, the rear bore and the chain length — in the title
   • The least expensive chain kit here, on six marketplaces
   • No material published on a wearing part

   Best for: A go-kart or mini bike running 25H chain, where acceleration is the point.

   ≈ £10 / €11

   Check price on Amazon
4.

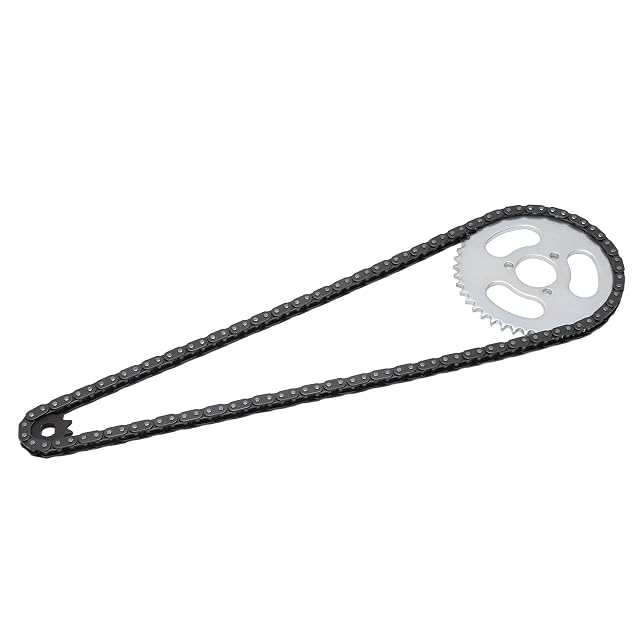

   Yosoo Health Gear T8F 11T/44T

   A T8F chain and sprocket set with an 11-tooth front and 44-tooth rear in steel, supplied as one chain and two sprockets, for modified karts and mini bikes.

   Chain type

   T8F (from the title)

   Gearing

   11 teeth front, 44 teeth rear (from the title)

   Contents

   1 chain + 1 T8F 11T front sprocket + 1 rear sprocket (maker’s bullet)

   Sprocket material

   Steel, stated for maximum power transmission (maker’s bullet)

   Stated vehicles

   Modified karts, off-road vehicles, mini bikes (maker’s bullet)

   Chain length

   The maker puts nothing in writing on this.

   Amazon reference

   B0C5JL6535 (one reference across 4 Amazon marketplaces)

   • Contents itemised piece by piece, so what arrives is known before opening the box
   • Sprocket material named as steel
   • Chain length not published, so the set may need shortening or may not reach

   Best for: A T8F-chained mini bike or modified kart needing chain and both sprockets at once.

   ≈ €18

   Check price on Amazon
5.

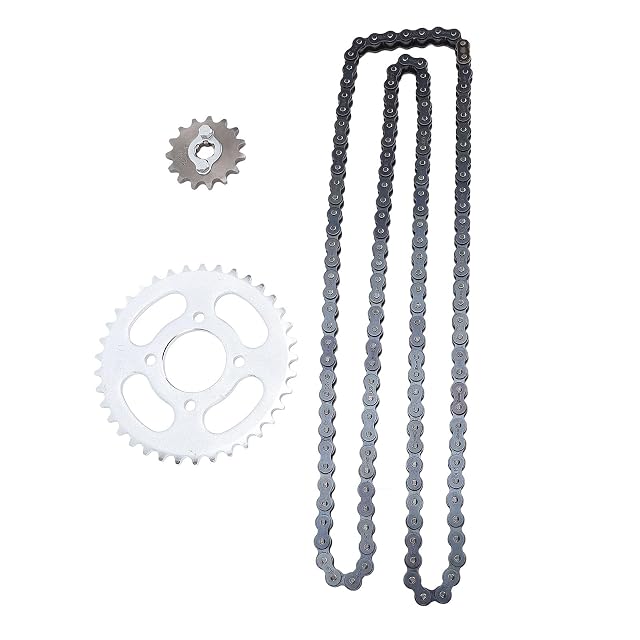

   Akozon 420 15T/37T

   A 420-pitch chain and sprocket kit with 15 front and 37 rear teeth in 45 steel and steel alloy, whose own bullet translates the tooth counts as tonnes.

   Pitch

   420 (from the title)

   Gearing

   15 teeth front, 37 teeth rear (from the title). The maker’s own bullet renders these as "a 15-tonne front sprocket" and "a 37-tonne rear sprocket" — a machine translation of 15T and 37T.

   Material

   45 steel and steel alloy, stated for strength, hardness and resistance to splitting (maker’s bullet)

   Contents

   Front sprocket, rear sprocket and 420 chain (maker’s bullet)

   Stated vehicles

   Pit, Pro, Trail, Dirt, Pocket, ATV quads (maker’s bullet)

   Maker’s instruction

   Confirm compatibility with your vehicle before buying, to avoid returns (maker’s bullet)

   Amazon reference

   B0DTJCBQHK (one reference across 5 Amazon marketplaces)

   • Names the steel grade — 45 steel — which no other kit in this family does
   • Contents itemised as three pieces
   • Its own bullets describe the sprockets in tonnes, which is a mistranslation of the tooth counts in its own title

   Best for: An ATV or quad on 420 chain, where the steel grade matters more than the prose.

   ≈ £18

   Check price on Amazon
